Pre-wired MID Meter Panel for Single/Three Phase Systems – 4 Way Smartpanel X96-5AMP-MID (CT Operated – Puse & Modbus Outputs)

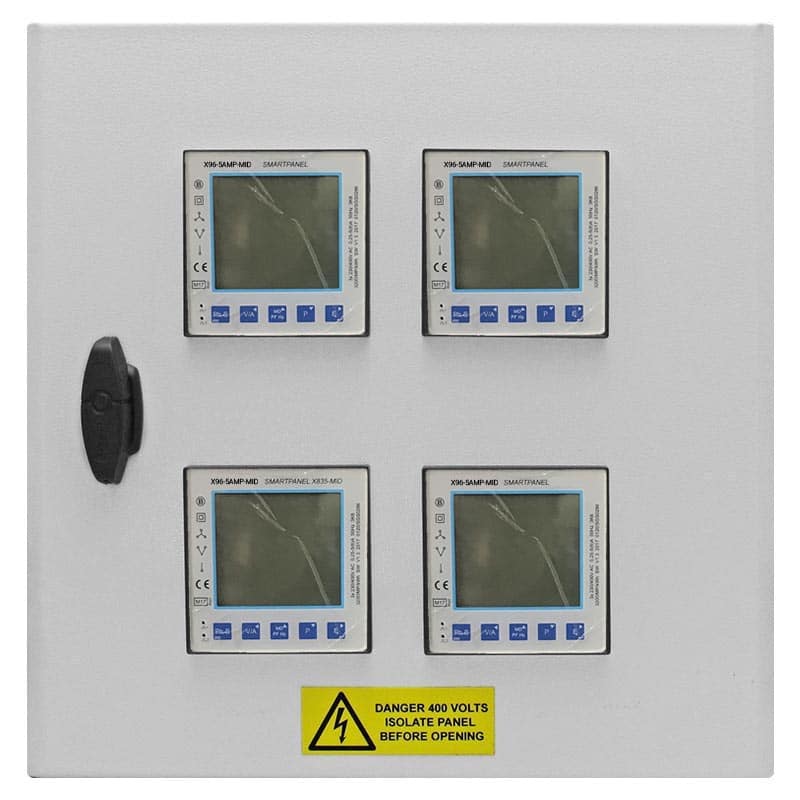

Quick and easy to install, the Pre-wired Meter Panel saves on time and space. A steel IP65 enclosure houses 4 door mounted Smartpanel X96-5AMP-MID meters, connected via a loom to labelled terminals for simple wiring.
The Smartpanel X96-5AMP is a new generation modern design power monitor that will measure and display electrical power quality parameters. It has been engineered to cover most applications (Single Phase and Three Phase networks / Built in Pulsed and RS485 Modbus / Import and Export kWh), replacing the need for several different models of this power meter.
As the demand for MID certified meters has increased, we have obtained annex B and D of the EC Directive 2004/22/EC. This power meter has been tested and certified for single or three phase networks and import and export active energy (kWh).
The Smartpanel X96-5AMP is produced to the highest quality and utilises the latest microprocessor and technology. It has a blue backlit display and 16 different measuring parameters. This includes a negative power reading to indicate reversal of CT installation or connection. With built in pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.
