RIK16-5A

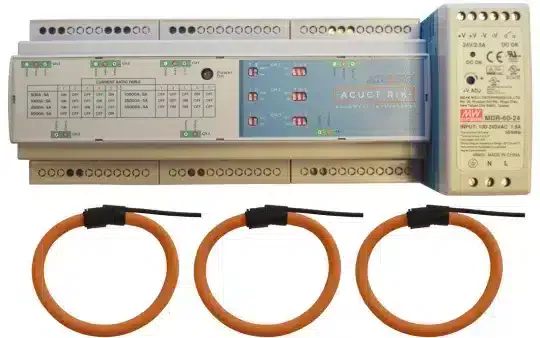

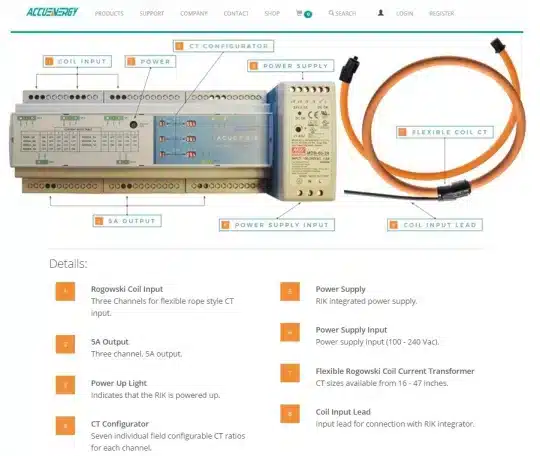

The Accuenergy Rogowski Integrator Kit (RIK) provides users with an easy-to-install, plug-n-play solution to be used with any power meters or equipment with a 5A current transformer input. Meaning the RIK will allow for the installation of Rogowski coil CTs in a variety of applications/configurations where spacial constraints may limit the use of other CT solutions. The RIK kit is designed around a three-channel 5A output integrator and includes with it: three Accuenergy Rogowski coil current sensors, and one power supply. All of these parts are further configurable for the needs of many applications.

Product Features:

• Flexible rope-like current sensor, designed to easily fit into panels or busbars where space may be limited.
• 0-5A rated output that works with any power meter or equipment with 5A nominal current transformer input.
• Current sensing range from 2.5A to 50,000A to fit all systems.
• Seven field-configurable CT ratios: 500A,1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA.
• Individual CT ratios can be configured for each channel. Works in any single-phase application with different current ratings.
• Works in both 50Hz and 60Hz systems.
