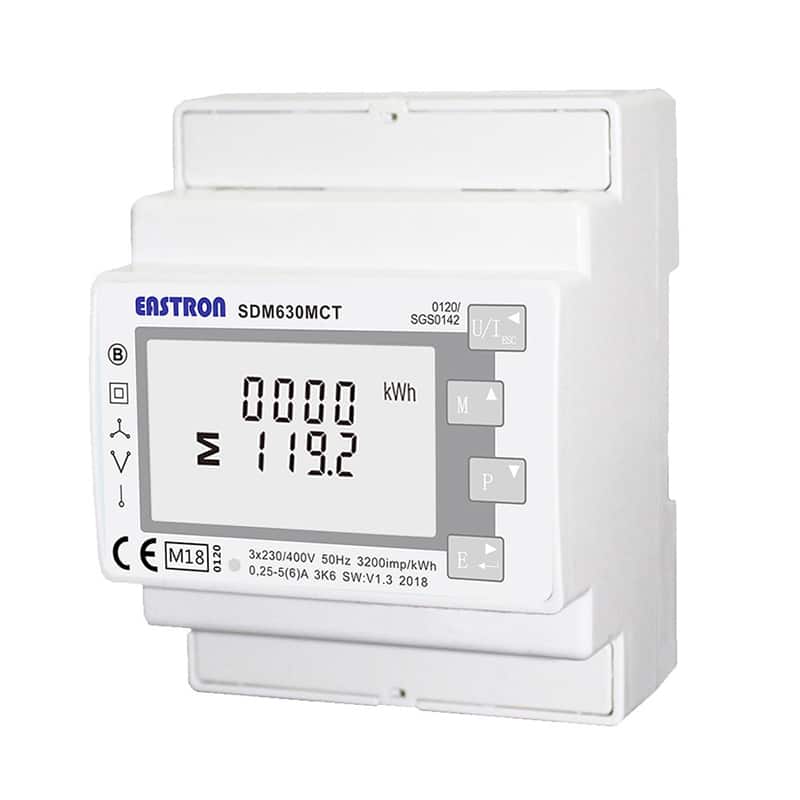

SDM630MCT-E-MID CT single / three phase digital kwh meter (X835- CT) V2
£89.00 (Inc. VAT £106.80)
SDM630E-MID single / three phase digital multifunction meter (CT operated – Modbus & Pulse outputs)
You may also like
This meter requires Current Transformers! To view our range of current transformers – click here.
SDM630E-MID single / three phase digital multifunction meter (CT operated – Pulse & Modbus outputs)
• Mounting: DIN rail compatible (standard 35mm rail)
• Type: CT-operated three-phase multifunction energy meter
• Input: 1A or 5A via external current transformers (CTs)
• Display: Backlit LCD with navigation buttons for easy parameter access
Measurement Capabilities
• Active & Reactive Energy (Import/Export)
• Voltage, Current, Frequency, Power Factor
• Harmonic distortion up to the 31st harmonic
• Max demand for current and power (configurable time window)
Communication & Outputs
• Pulse Outputs: 2 configurable outputs for kWh and kVArh
• Protocols: RS485 Modbus RTU
• MID Certified: Suitable for billing applications
User Manual
MID Certificate
Summary Sheet
