YTL DEM4A00B Three Phase Meter (Modbus output)
£60.00 (Inc. VAT £72.00)

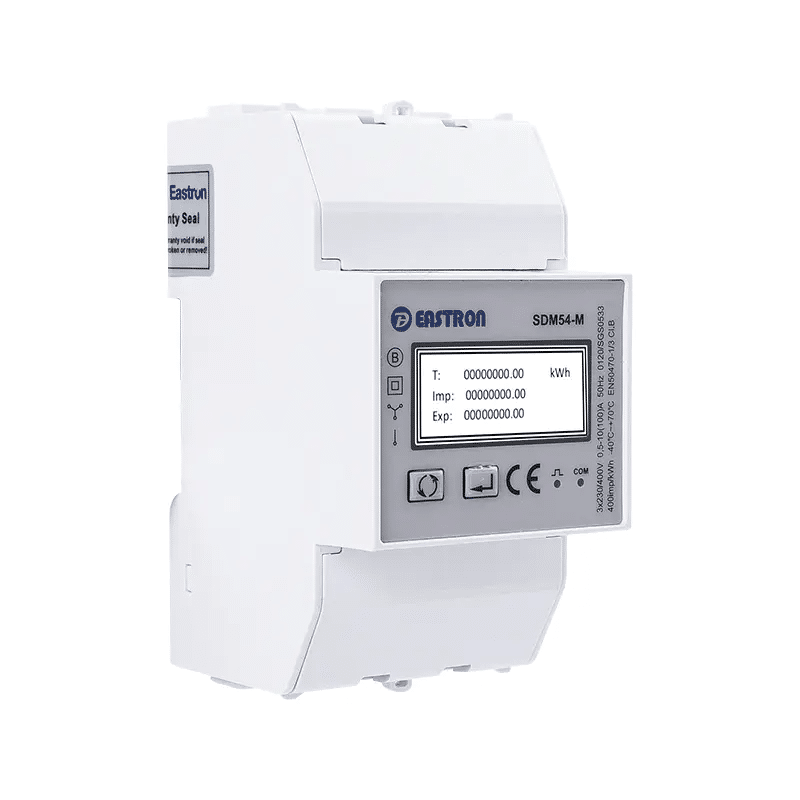

SDM54M – 3 Phase 4 wire 3 Module Din Rail Three Phase Multi-function Energy Meter
£65.00 (Inc. VAT £78.00)
- Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,V etc
- LCD with backlit
- 2 Pulse Output +Modbus
- Bi-directional measurement
- 100A direct load
- 3 Module 54mm width
- MID approved
- 3P4W, 1P2W
You may also like
- Three‑phase, 100A direct-fed multifunction energy meter.
- MID B+D certified with Class B accuracy for billing applications.
- Measures voltage, current, frequency, power, power factor, and active & reactive energy (import/export).
- Supports 1‑phase (1p2w) and 3‑phase (3p4w) systems.
- Bi‑directional measurement suitable for renewables and EV charging.
- Maximum demand measurement for power & current (up to 60‑min periods).
Outputs & Communication
- RS485 Modbus,
- Two pulse outputs included as standard (Pulse 2 fixed at 400 imp/kWh).
- Modbus baud rates: 2400–38400bps, address range 1–247, up to 1000m distance.
