1 way SDM630CTE pre-wired Meter box

What’s included?

• 1 x 3-Phase DIN Rail Meter (select requirements below)
• 1 x ABB Mistral 8 Module Enclosure
• 3 x Split Core CT (select ratio & aperture below)
• CT links, voltage reference and earthing terminals
• 1m of 1.5mm stranded blue, brown, black & grey cable
• 1m of 2.5mm stranded earth cable

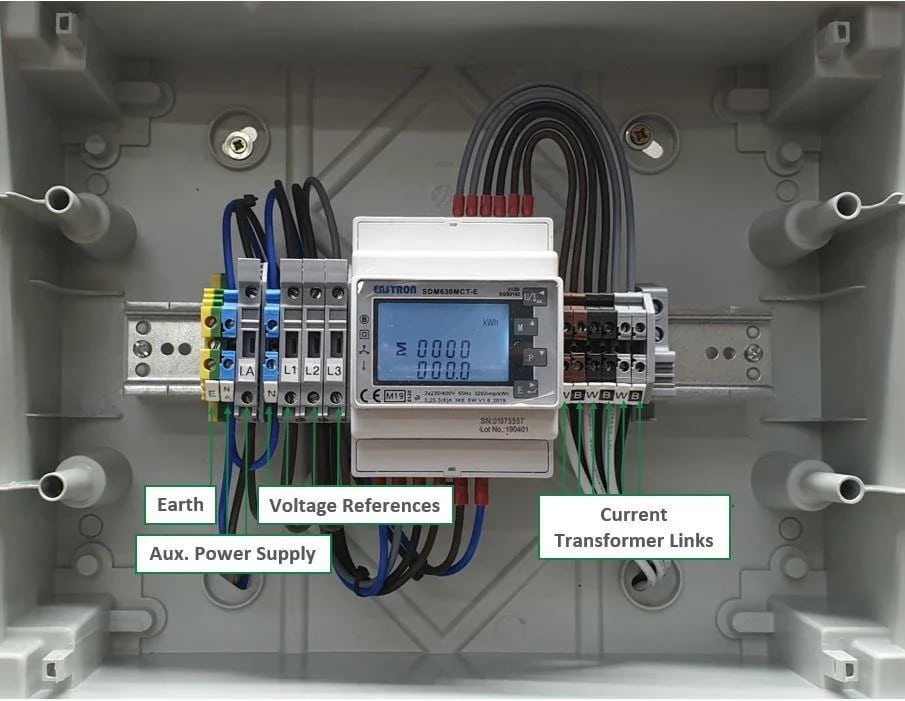

Our three phase DIN rail metering kit is built for fast and easy installation and is ideal for retrofit applications.  The compact enclosure has cable entry points on either side and our meter engineers pre-fit the required CT links, voltage reference and earthing with clear labelling. It comes complete with split core CT’s that simply clip around the supplies, saving time and disruption.

This kit is available with one of four meters offering a range of features from simple pulse outputs to remote access to readings via ethernet, (full details in the product specification tab below).  You can also select CT’s appropriate for your circuit with 24mm & 36mm apertures available covering loads of 100A to 400A.  Can’t find a meter or CT to suit your requirements, contact our friendly sales teams who will be happy to put together a bespoke quotation.

Our pre-wired enclosures are built to order and are typically available in 2-3 days, however in times of high demand, this lead time may increase.
